Processor

CPU

Intel? Core? 4^th  Haswell-U Soc i3/i5/i7 Processor

Memory

Onboard 2GB\4GB DDR3 1066/1333/1600MHz,Can add 1 slot, maximum expansion of 12GB memory

storage

Onboard SSD16/32/64/128G（optional）

SATAand MSATA，HDD and SSD（optional）

Internet  (LAN)

1*RTL8111E RJ45 Gigabit network interface

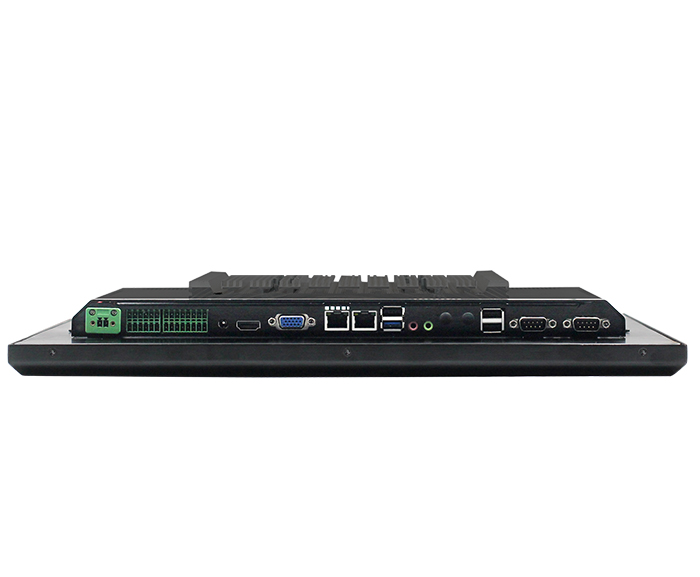

I/O Interface

4*RS-232, 2*RS422/485,2*DB9 Port RS485/422 4*three cable RS-232，

2*USB2.0,2*USB3.0，

1*14BIT GPIO terminal，

1*LINE OUT 1*MIC，

2*Wifi antenna Port ，

1*button switch，

1*VGA Maximum resolution support 2048x1536 1*HDMI Maximum resolution support 3200*2000@60HZ

Expansion slot

1* full size Mini-PCIE slot

Watch-Dog timer

0-255 seconds, providing a watchdog routine

Physical characteristics

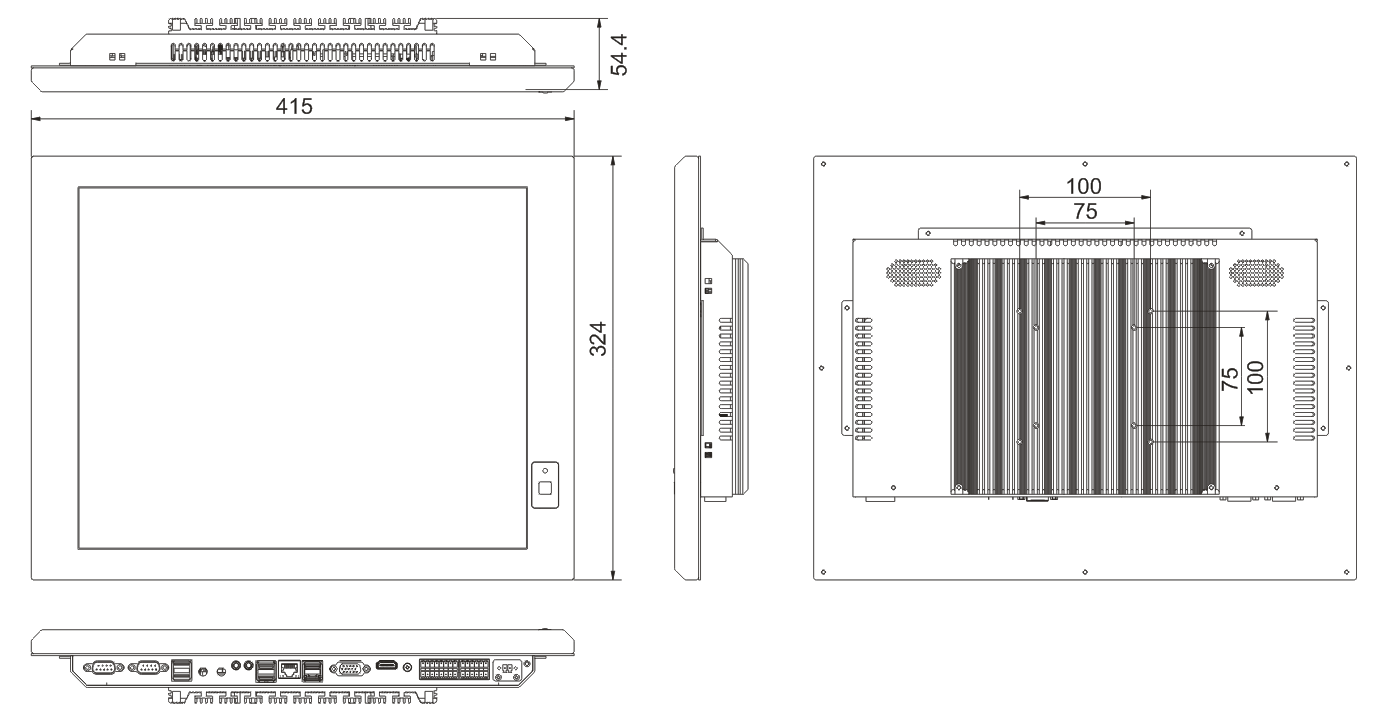

size

415*324*54.4

weight

4.56kg

OS support

Operate system

Support for Windows 7/Windows8/Windows8.1/Windows10/Linux/Android

Power support

Input voltage

Single input DC DC12V power supply +/-5% (optional widened voltage module, support 9-36V power supply)

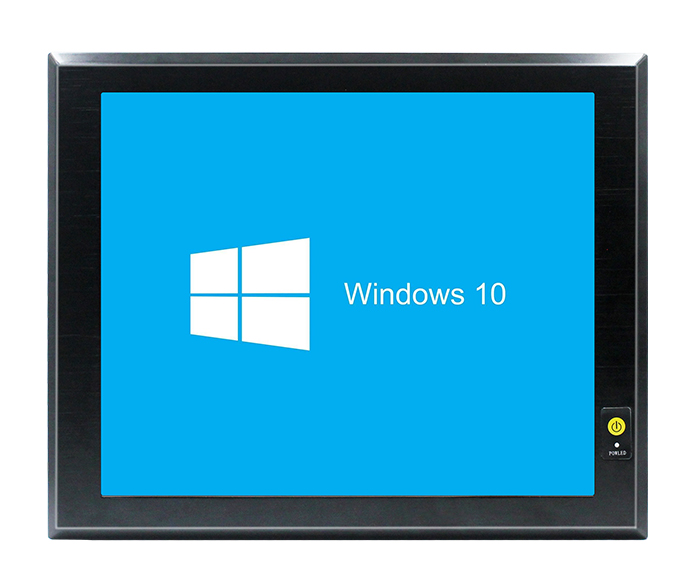

LCD display

Display type

17 inch TFT LED

Max resolution

1280*1024

view

80 (left), 80 (right), 70 (top), 70 (bottom)

Lumens (cd/m2)

350cd/m2

Contrast

400:1

Backlight Life

30,000 hrs (Min.)

Touch panel

TYPE

Five-wire resistive touch screen

Light Transmittance

≥85%

Controller Interface

USB interface

Durability(Touch Times)

More than 35 million times

Environment

Working Temperature

-20°C ~ +60°C

Storage Temperature

-40°C ~ +85°C

Relative humidity

0% ~ 90% relative humidity, no condensation

EMC

CE, FCC Class B, BSMI

CERTIFICATE

CB, CCC, BSMI, UL

Front panel protection

Front panel IP65
