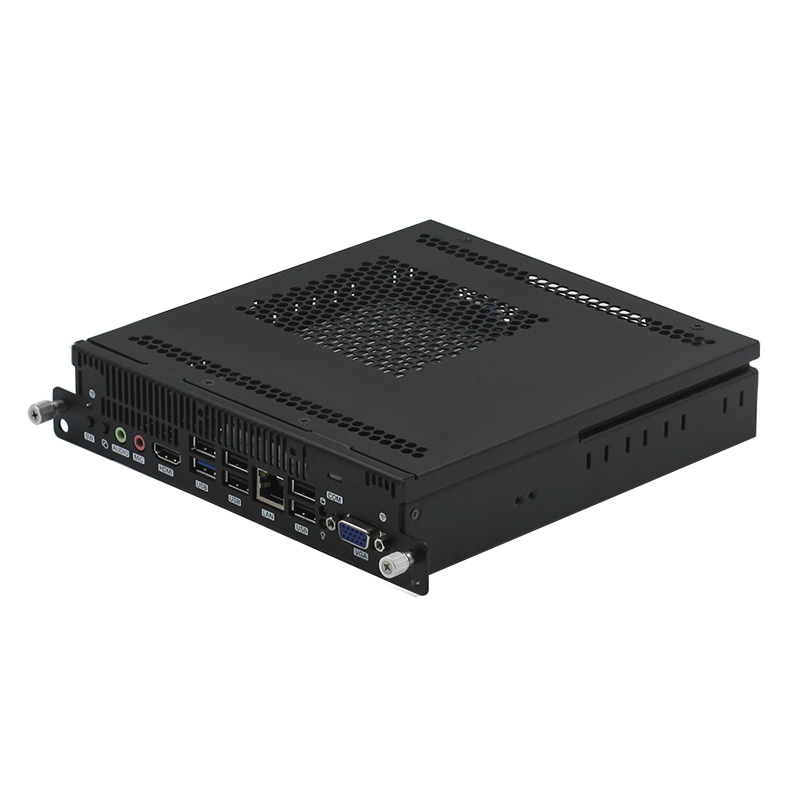

OPS119S-OPS19B

Model : OPS119S-OPS19B

Description :
◆ J1900\\J1800；
◆ 1*DDR3 SODIMM 240 Socket；
◆ 1*RS-232;
◆ support OPS expansion;
◆ Single input DC power supply，DC12-19V；
◆ size:204*195*42mm ；

Product recommendation

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

◆ J1900\J1800；

◆ 1*DDR3 SODIMM 240 Socket；

◆ 1*RS-232，

◆ support OPS expansion

◆ Single input DC power supply，DC12-19V；

◆ size:204*195*42mm ；

specifications

Module	OPS119S(J1900)
Size	20419542mm
Color	Black
CPU	Baytrail-D/I/M?serial CPU J1900(quad core）2.0Ghz up to2.4Ghz E3845(quad core）1.91Ghz J1800（dual core）1.6Ghz up to2.0Ghz
Chipset	Support Baytrail-I/D/M single chipset
Ram socket	1*DDR3 SODIMM 240 Socket
Lan Port	1*RTL8111H Gigabit Ethernet LAN
Audio	Realtek HD ALC662 Audio decoder (Left/righ channel+Mic)
storage	1SATA3.0 1NGFF(SSD）slot NGFF_SSD:32GB/64GB/128GB/256GB for optional HDD_SATA:500gb/1T for optional ?
Display Interface	VGA :Maximum supported 20481536 HDMI1.4:Maximum supported?19201200 ?
WIFI	1*NGFF?Slot ?Interface support WIFI/3G/4G module

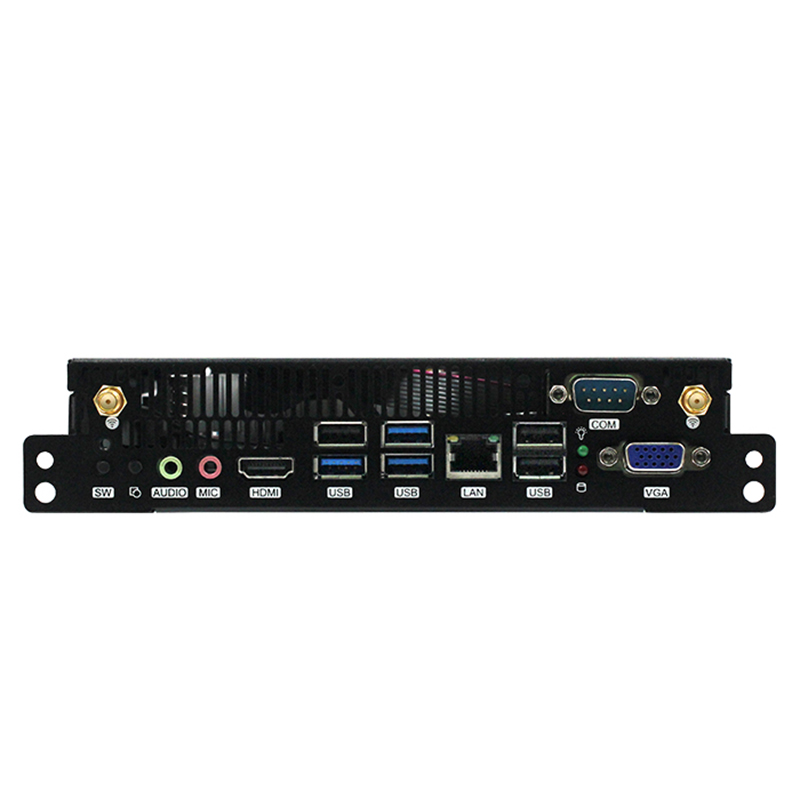

Panel interface	1LAN ?1HDMI ?1VGA ?1COM ?1DC ?1MIC-IN ?1LINE-OUT?1USB3.0?5USB2.0???2WIFI?antenna Ports

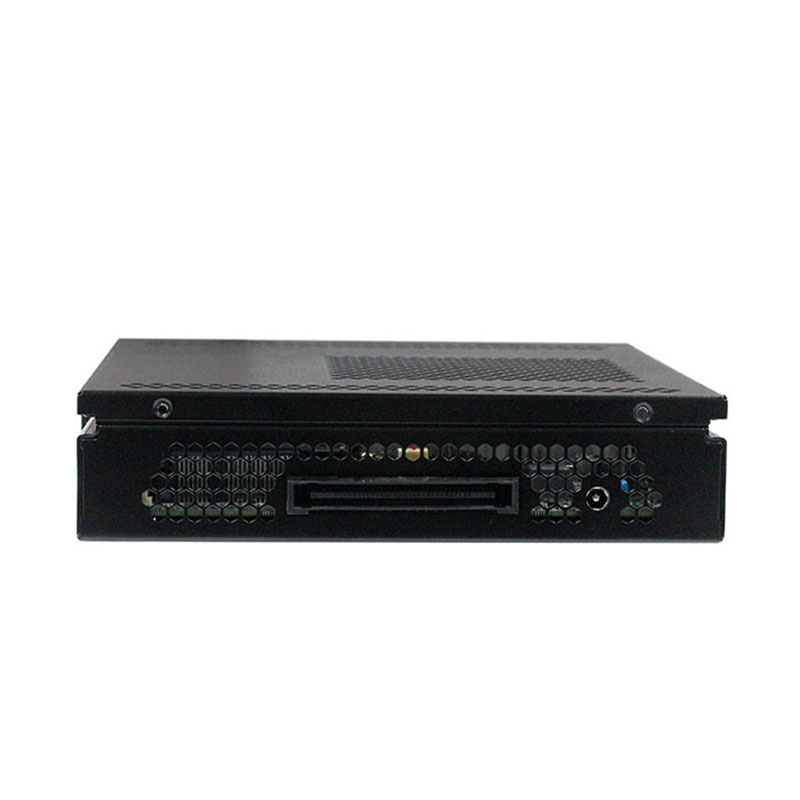

OPS interface board ?Ports	1LINE-OUT 1HDMI 1DP 1DC ?3USB2.0??1Switch button
Operating system	?
Working temperature and humidity	-20°C~+60°C(-4°F~140°F) 0%~90% (non-condensing)
Power Supply	DC 12V-19V
Serial port	1*RS232 Rj45 Port
material	PVC injection molding

? ?

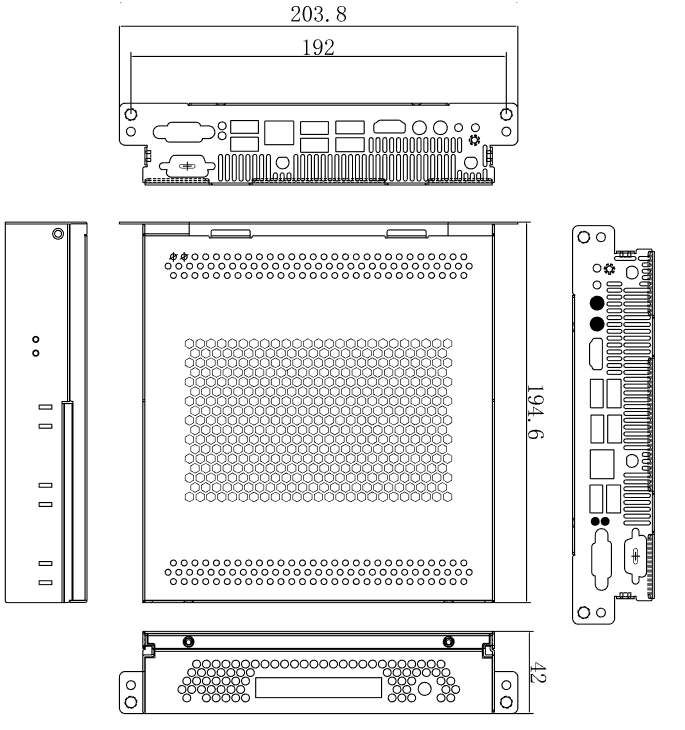

?Size

?

order information

Suitable Motherboard

description

CPU optional

OPS19B-J1900

Integrated Baytrail-D/I/M J1900

Quad core 2.0Ghz up to2.4Ghz

J1900(quad core）

2.0Ghz up to2.4Ghz

E3845(quad core）

1.91Ghz

J1800（dual core）

1.6Ghz up to2.0Ghz
