FA-806H

Model : FA-806H

Description :
◆ Intel Baytrail serial（J1900/J1800/E3845）CPU；
◆ Onboard Integrated 2GB/4GB DDR3L Ram；
◆ 6*Intel I211AT Gigabit（LAN1 and LAN2，LAN3 and LAN4 supports 2*Group Bypass , for optional）；
◆ Providing 1*VGA Port；
◆ 1*SATA or 1*Mini-SATA（optional）1*Cfast ；
◆ Support power-on automatic power-on function, jumper selection;
◆ Single input DC power supply, DC12V;
◆ Size: 235*175.5*52mm ；

Product recommendation

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

◆ Intel Baytrail serial（J1900/J1800/E3845）CPU；

◆ Onboard Integrated 2GB/4GB DDR3L Ram；

◆ 6*Intel I211AT Gigabit（LAN1 and LAN2，LAN3 and LAN4 supports 2*Group Bypass , for optional）；

◆ Providing 1*VGA Port；

◆ 1*SATA or 1*Mini-SATA（optional）1*Cfast ；

◆ Support power-on automatic power-on function, jumper selection;

◆ Single input DC power supply, DC12V;

◆ Size: 235*175.5*52mm ；

Specification

Model	FA-806H
Size	235175.552mm
Processor	Intel Baytrail serial CPU（J1900/J1800/E3845）
Chipset	Intel Baytrail single chipset
memory	Onboard 2GB/4GB DDR3L?Ram, max support 8G
Expansion slot	1 DDR3 SODIMM 204 Socket
Lan	6Intel I211AT Gigabit（LAN1 and LAN2，LAN3 and LAN4 supports 2Group Bypass , for optional）
storage	1MINISATA ??or ?1SATA（optional） 1*CF/Cfast
color	Sliver

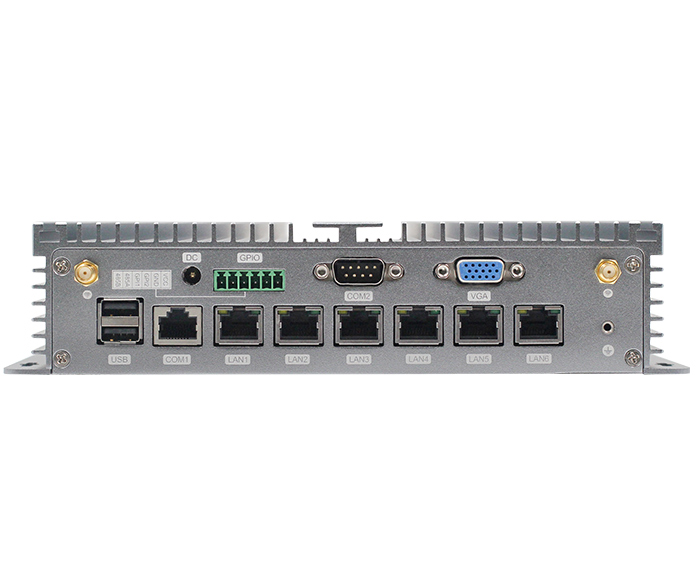

Panel interface	6Intel I211ATlan Port 1RS485 Phoenix terminal interface 4GPIO Phoenix terminal interface 1VGA 2USB 1DC 2*WIFI

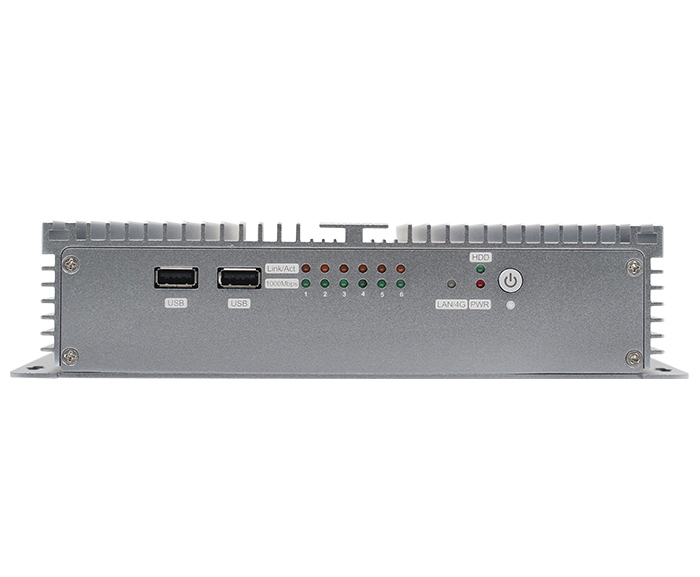

Front panel interface	1* switch button with indicator light 1* hard disk indicator 1* power indicator 1*4G module signal indicator
Operate system	Windows7 windows8 windows10 ?Linux OS

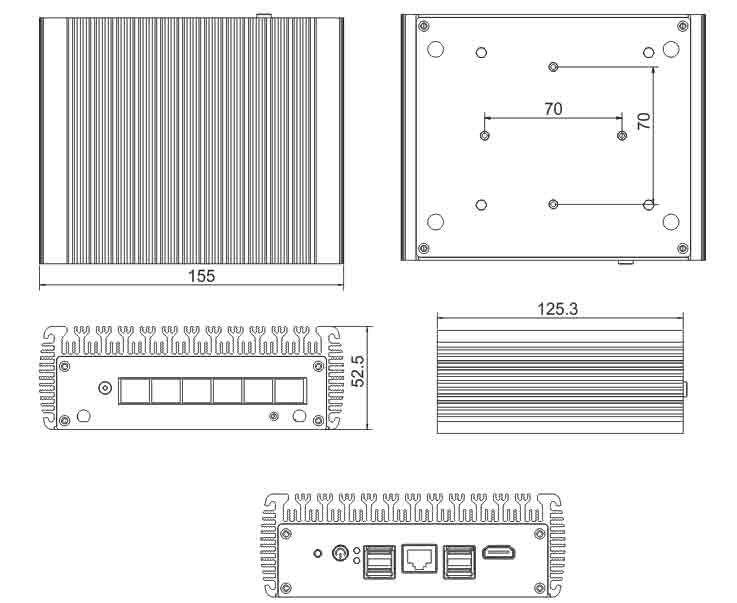

Size

order information

Motherboard

description

CPU optional

?

TOP19B6L

Intel Baytrail serial （J1900/N2806/N2900/J1800）

Onboard 2GB/4GB DDR3L Ram

6*Intel I211AT Gigabit Lan Port

?

??

J1900/J1800
