OPS116U

Model : OPS116U

Description :
◆ Integrated Intel3855U/3865U/3955U/3965U/ 6th/7th Mobile Skylake/Kaby lake-U single chipset CPU;
◆ 1 DDR4 SODIMM 260 Socket;
◆ Providing 1*VGA,1*HDMI;
◆ Support power-on automatic boot function, jumper selection;
◆ Single input DC power supply, DC12-19V power supply;
◆ Support OPS expansion;
◆ size 180*120*30 mm;

Product recommendation

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

◆ Integrated Intel3855U/3865U/3955U/3965U/ 6^th/7th Mobile Skylake/Kaby lake-U single chipset CPU

◆ 1 DDR4 SODIMM 260 Socket

◆ Providing 1*VGA,1*HDMI

◆ Support power-on automatic boot function, jumper selection

◆ Single input DC power supply, DC12-19V power supply

◆ Support OPS expansion

◆ size 180*120*30 mm

Specification

?Model	OPS116U
size	18012030 mm
Processor	3855U/3865U（Celeron 1.6-1.8GHz） 3955U/3965U （Celeron 2.0-2.2GHz） I3-6100u (Core 2.3ghz) I3-7100u (Core 2.4ghz) I5-6200u (Core 2.3ghz) I5-7200u (Core 2.5gh-3.1ghz) I7-6500u (Core 2.5gh-3.1ghz) I7-7500u (Core 2.7gh-3.5ghz)
chipset	Intel single chipset
Ram socket	1*DDR4?SODIMM 260?Socket,max to be 32GB Ram
Hard disk	32GB 64G/128G /256 SSD(NGFF) 500G/1TB HDD
Display interface	VGA and HDMI
Internet	onboard?1*?Gigabit Lan Port
audio	Onboard ?HDA ALC662
Whole machine key	Whole machine key
Wifi	1NGFF?Port（KEY E） 1NGFF port , support 3G/4G Module
storage	1MINISATA ?support SSD; 1SATA3.0 1*SATA_HDD
color	Black

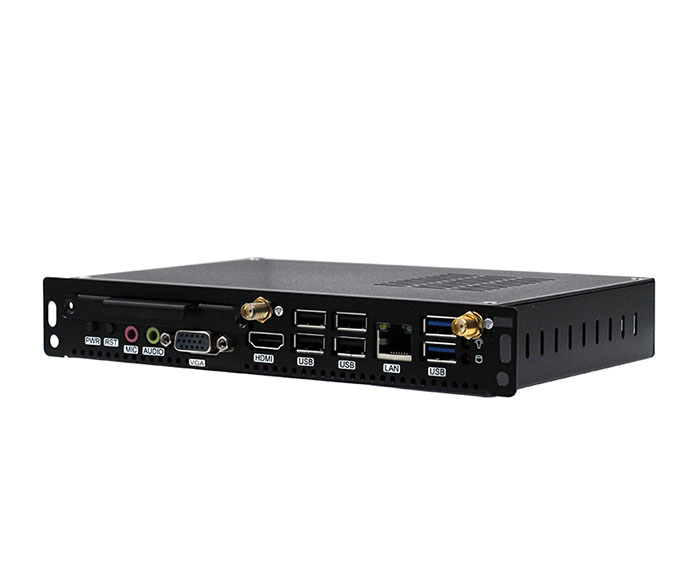

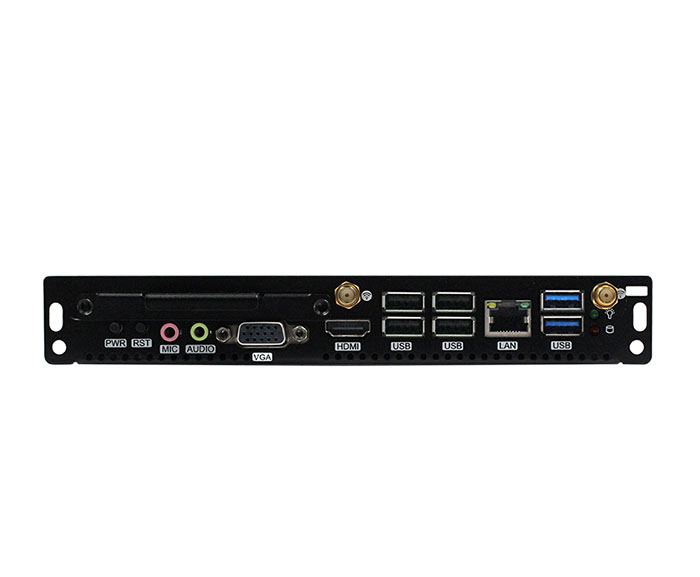

Panel interface	1LAN ?1HDMI ?1VGA ?1DC ?1MIC-IN ?1LINE-OUT 2USB3.0 2USB2.0 ?2WIFI antenna interface 1switch button 1reset button 1hard disk indicator 1*power indicator
OPS straight card interface	1LINE-OUT 1HDMI 1DP (pick one from two ) 1DC 3*USB ?1 switch button
Standard	112V 60W power adapter 1OPS riser card (optional) 1*WIFI antenna
Operate system	Windows8.1 Windows 10 Linux

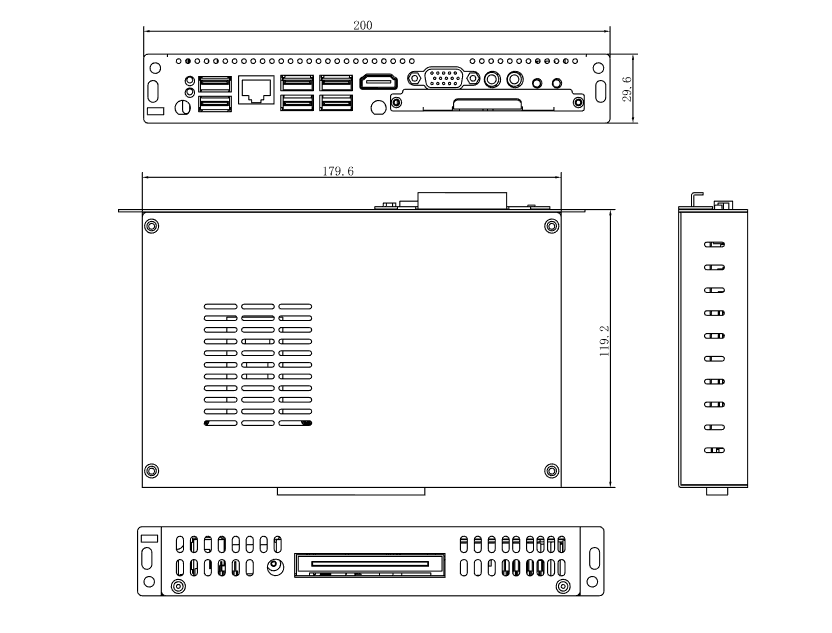

Size?

order information

Model

description

CPU?optional

OPS100C

OPS200C

Integrated Celeron CPU

?3855U/3865U/3955U/3965U

?

?

OPS100C-I3

OPS200C-I3

Integrated Intel 6^th?7thMobile Skylake-U/kaby lake-U

?

Support 6^th??Intel? Core? i3

example：I3-6100U，I3-6006U

I7-7100U

?

OPS100C-I5

OPS200C-I5

Integrated Intel 6^th?7thMobile Skylake-U/kaby lake-U

?

Support 6^th???Intel? Core? i5

?????????example：I5-6200U,I5-6300U

I7-7200U

?

OPS100C-I7

OPS200C-I7

Integrated Intel 6^th?7thMobile Skylake-U/kaby lake-U

?

Support 6^th??Intel? Core? i7

example：I7-6500U,I7-6600U/I7-7500u
