OPS809U

Model : OPS809U

Description :
◆ Integrated Intel 5th generation mobile Broadwell-U single-chip CPU;
◆ Integrated 2GB/4GB DDR3L memory;
◆ Provide 1*VGA, 1*HDMI;
◆ Support power-on automatic power-on function, jumper selection;
◆ Single input DC power supply, DC12-19V power supply;
◆ Support OPS extension;
◆ Structure 200*195*30mm;

Product recommendation

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

◆ Integrated Intel 5th generation mobile Broadwell-U single-chip CPU;
◆ Integrated 2GB/4GB DDR3L memory;
◆ Provide 1*VGA, 1*HDMI;
◆ Support power-on automatic power-on function, jumper selection;
◆ Single input DC power supply, DC12-19V power supply;
◆ Support OPS extension;
◆ Structure 200*195*30mm;

specification:

model

OPS809U

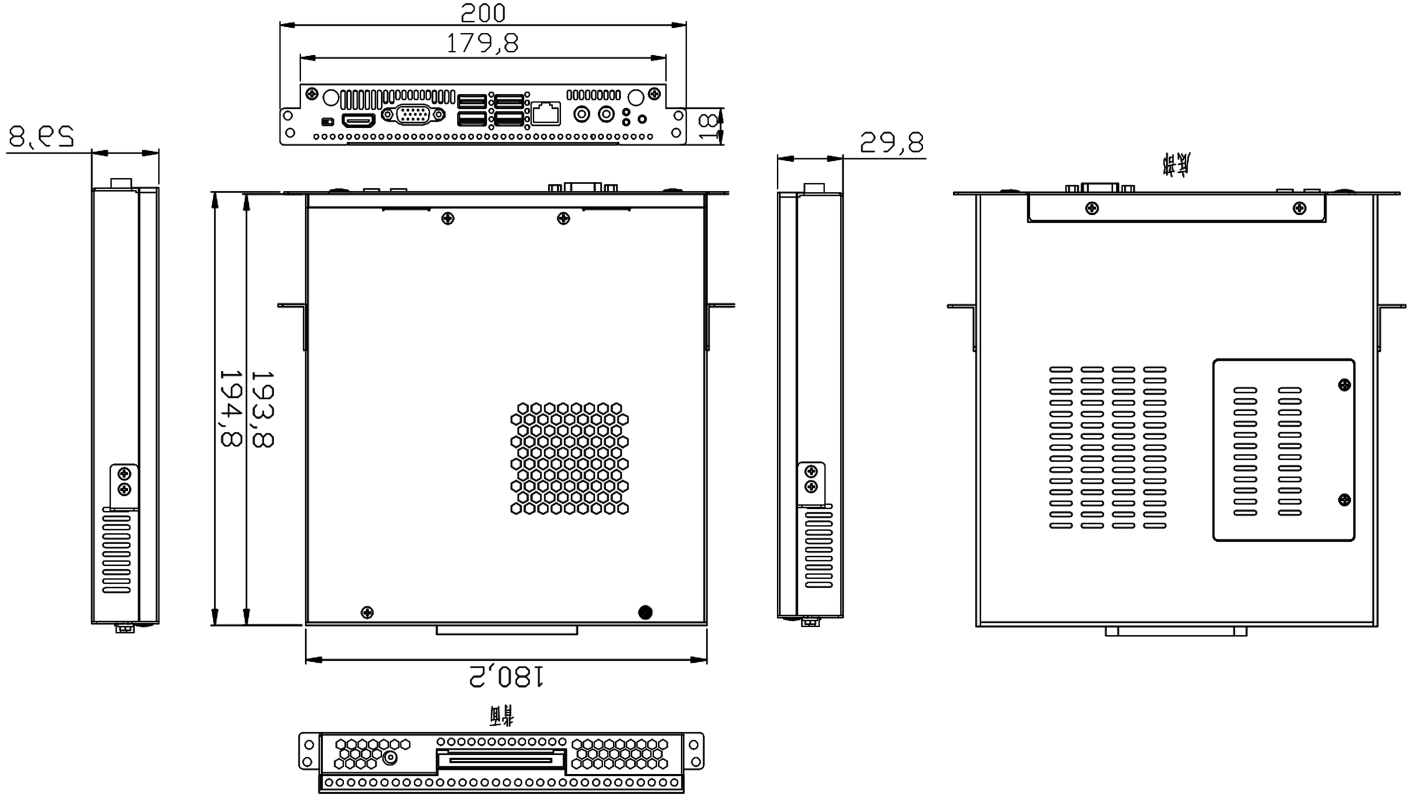

size

200*195*30mm

processor

Integrated Intel 5th generation mobile Broadwell-U single-chip CPU

chipset

Intel single chip

RAM

Onboard 2GB/4GB DDR3 memory, expandable to 12G

Expansion slot

1 DDR3 SODIMM 204 Socket

Network card

Onboard 1 Gigabit LAN

Audio

Onboard HDA ALC662

Storage device

1*MINISATA supports SSD; 1*SATA3.0

colour

black

Panel interface

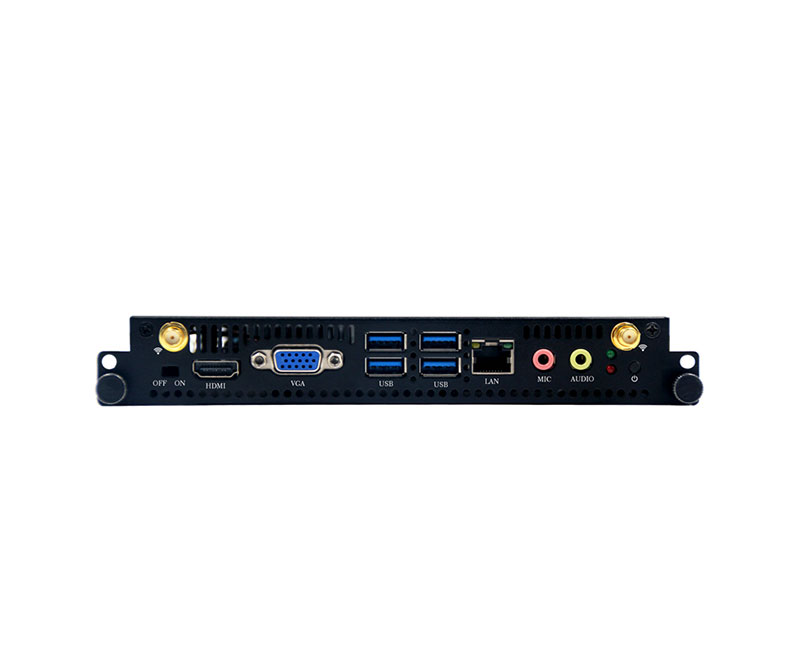

1*LAN ?1*HDMI ?1*VGA ?1*DC ?1*MIC-IN ?1*LINE-OUT??4*USB3.0 ??2*WIFI?antenna?

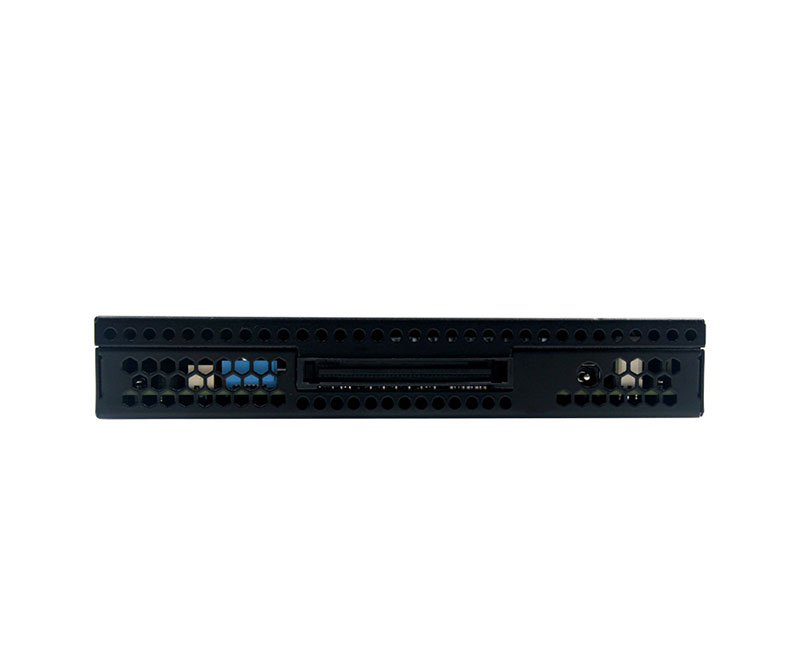

OPS straight card interface

1*LINE-OUT ?1*HDMI ???1*DC ??3*USB ??1?switch button

Standard

1*12V 60W power adapter 1*OPS riser card (optional) 1*WIFI antenna

Storage Devic

Size:

Ordering Information:

Can be used with motherboard model

Description

CPU optional

?

???????OPS90B

Intel? CoreTM fifth generation Broadwell-U Soc i3/i5/i7 processor

Hdmi+vga double display

4*USB3.0

??

I3-5010U

I5-5200U

I7-5500U

Packing List ? :

1*Host

1*Drive CD

1* User's Guide

Optional Accessories:

product name	Specifications
WIFI module	Long Card/Short Card
SSD	8G/16G/32G/64G/128G
Notebook Hard Drive	320G/500G
Power	12V 5A/12V 7A
