N-BOX-T2

Model : N-BOX-T2

Description :
◆ compact embedded system design support Intel;
Baytrail-D/I/M series processor;
◆DDR3L 1.35V SODIMM 204 Socket memory slot supports up to 8G;
◆ Onboard 32/64/128G EMMC chip (optional);
◆ Mini-PCIE slot, support wifi module, with SIM card Slot, support 3G module;
◆ Rich I/O interface, including 2 USB ports, 4 Intel I211 networksCard, 1 HDMI, 1 RJ45 interface RS485 or RS232 for optional ;
◆ Adopt fanless design, no noise design, stable and high efficiency;
◆ 12V DC power supply, power supply is simple and convenient;

Product recommendation

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

◆ compact embedded system design support Intel

Baytrail-D/I/M series processor;

◆DDR3L 1.35V SODIMM 204 Socket memory slot supports up to 8G;

◆ Onboard 32/64/128G EMMC chip (optional);

◆ Mini-PCIE slot, support wifi module, with SIM card Slot, support 3G module;

◆ Rich I/O interface, including 2 USB ports, 4 Intel I211 networksCard, 1 HDMI, 1 RJ45 interface RS485 or RS232 for optional ;

◆ Adopt fanless design, no noise design, stable and high efficiency;

◆ 12V DC power supply, power supply is simple and convenient

Specifications

? Case	Module	N-BOX-T2
	color	Black
	size	13412645.3 mm
	material	6063
? ? Motherboard	Chipset	Baytrail-I/D/M serial processor single chipset
	CPU	Support Baytrail-I/D/M serial Processor?(E3845 J1900 J1800)
	Memory	Single channel DDR3L 1.35V?1066/1333/1600MHz，max support 8G
	Graphic card	Intel HD Graphics
	Expansion slot	1*MINI-PCIE?slot，can be add wifi、3G/4G Module (Support PCIE and USB signal equipment
		1*MINI-SATA?slot ，can add SSD
		1*onbaord EMMC 32/64/128G(optional）
Storage	HDD	2.5inch hard disk
	SSD	Solid State Drives
	EMMC	32/64/128G（Optional）
Function	display output	HDMI
	Internet Output	4*Intel I211?lan Port
	USB	1USB2.0、1USB3.0

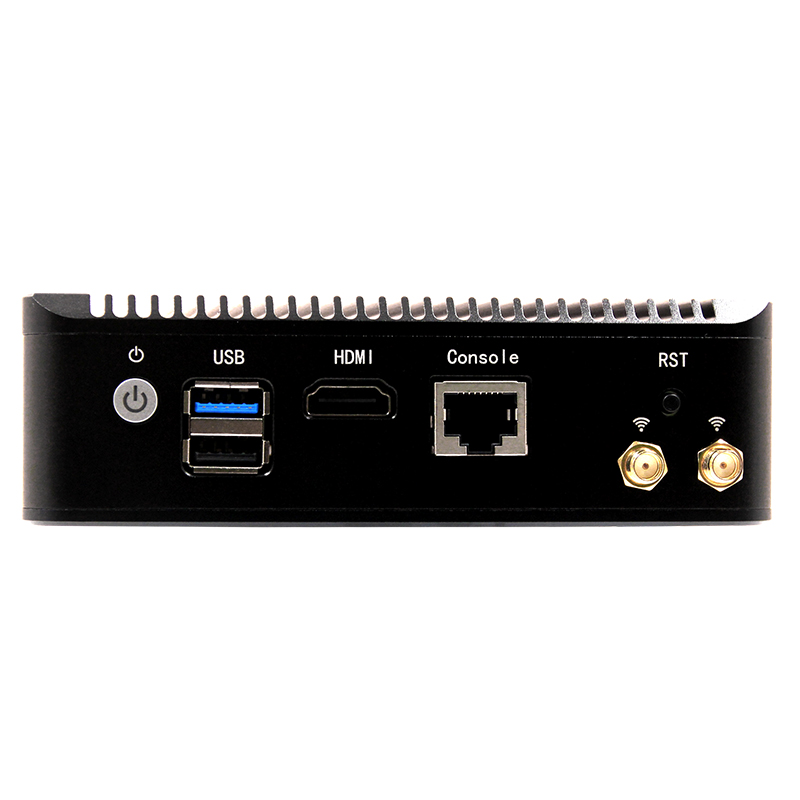

	Front?I/O interface	1Power switch (with indicator light), 1 reset button, 1HDMI, 1RJ45 interface RS485 or RS232, 2*USB

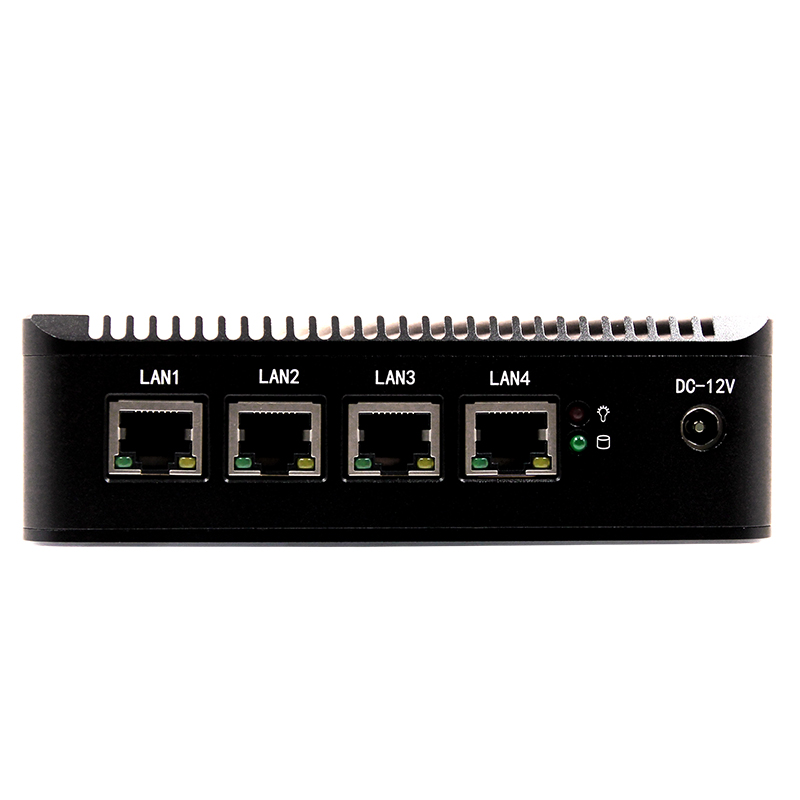

	Rear I/O interface	4Intel I211High Performance Gigabit LAN, 1 Power Indicator, 1* HDD Indicator, 1*DC Power Interface
	Working temperature	-10~60℃
	Operate system	Windows7、Windows 8、Windows8.1 Windows10、linux
	Power	DC12V?Power supply

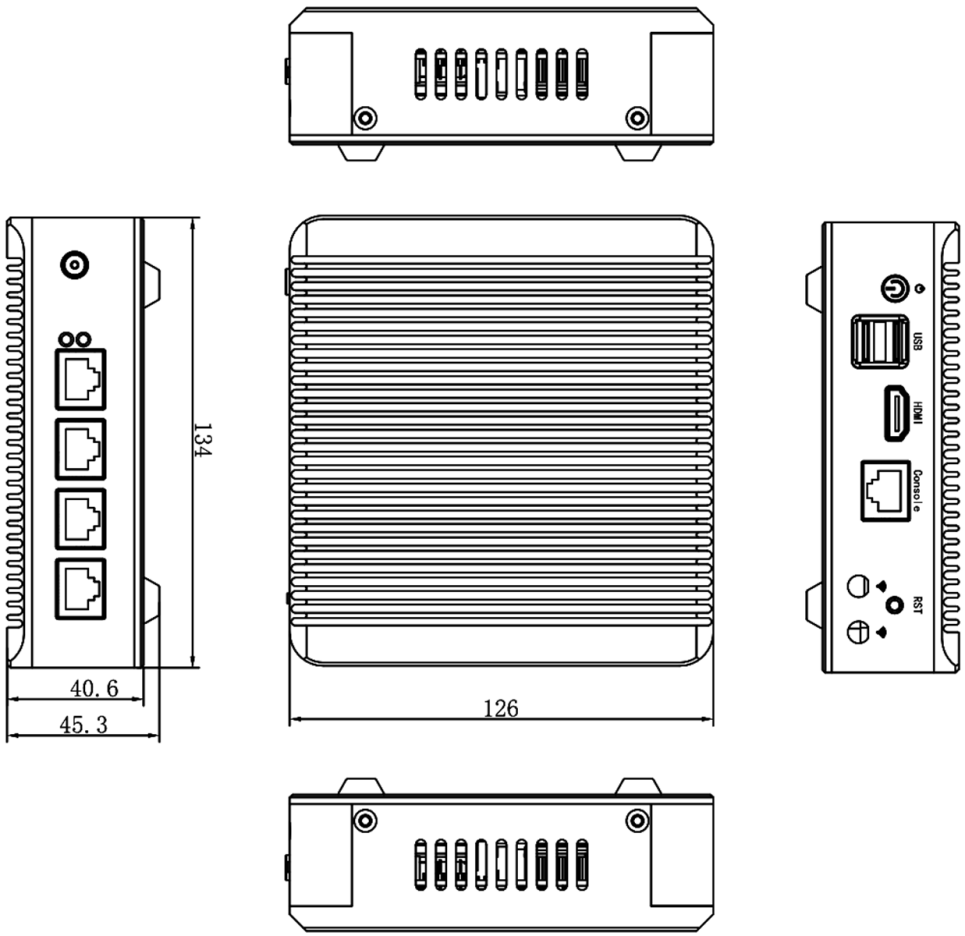

?Size

Order information

Module

description

CPU

WT19NE4L-J1900

Onboard Intel celeron Baytrail J1900

Quad core 2.0Ghz up to2.4Ghz

DDR3 SODIMM 204 SocketMemory slot supports up to 8G

Integrated 32G/64/128G EMMC chip (optional）

J1900,E3845(quad core）

WT19NE4L-J1800

Onboard celeron intel Baytrail J1800

Dual core 1.6Ghz up to2.0Ghz

Memory slot supports up to 8G

Integrated 32G/64/128G EMMC chip (optional

J1800（dual core）
