CPU

CPU

Apollo lake?serial Processor

CPU package

BGA

Chipset

Apollo lake?single chip set

BIOS

EFI BIOS

Ram

Technology Architecture

Single channel DDR3L?1066/1333/1600/1866MHz

Capacity

Max support 8GB?DDR3L Ram

Socket

DDR3 SODIMM 204 Socket

?

Video

Graphics controller

Intel HD Graphics

VGA

VGA?max resolution support 2048x1536

HDMI

max resolution support3840*2160

Dual display

VGA+HDMI Synchronous or asynchronous

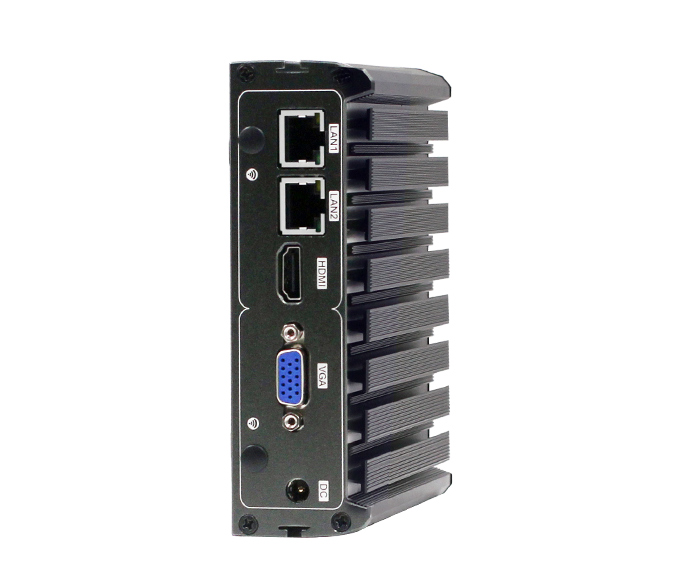

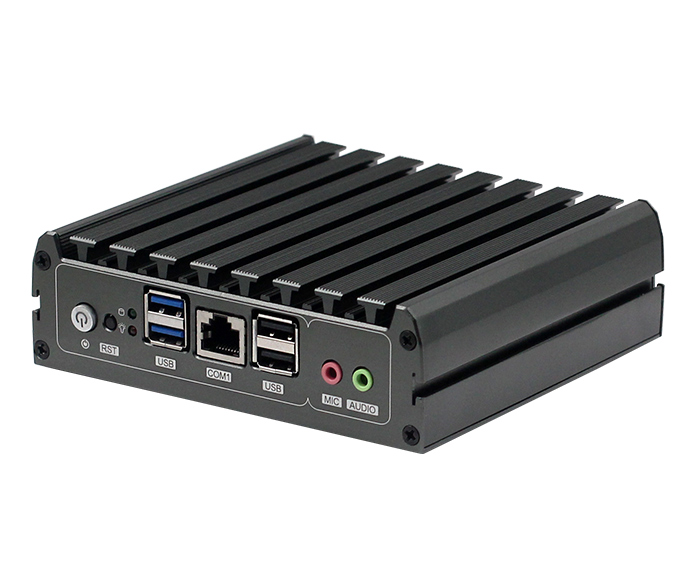

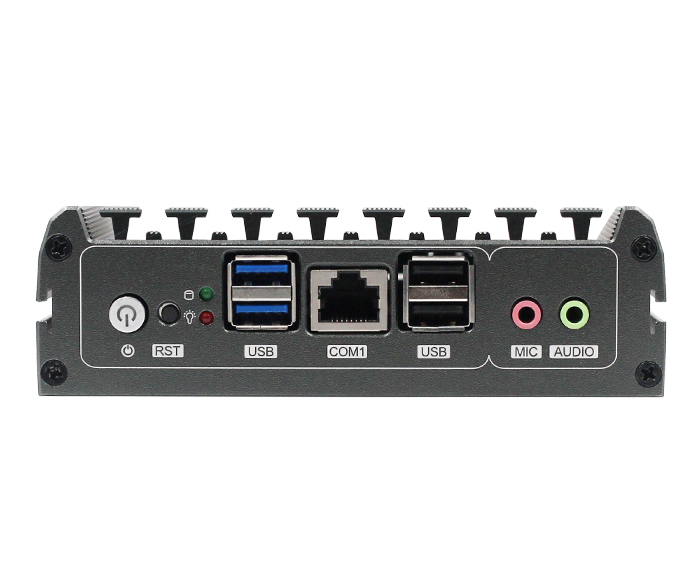

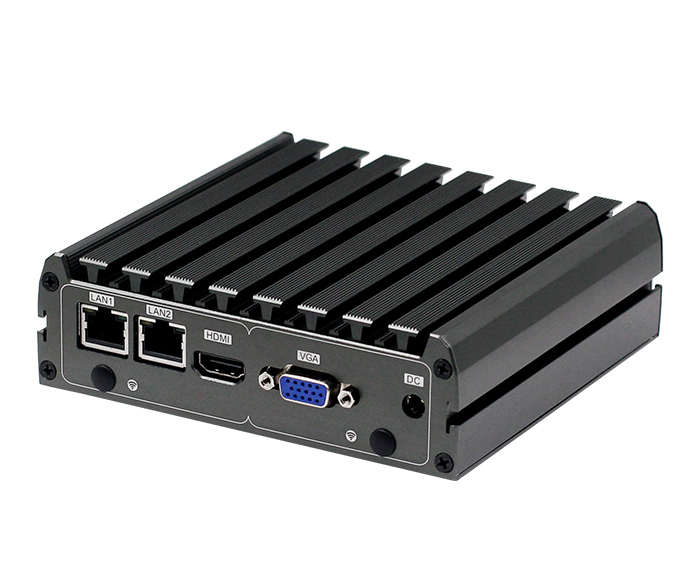

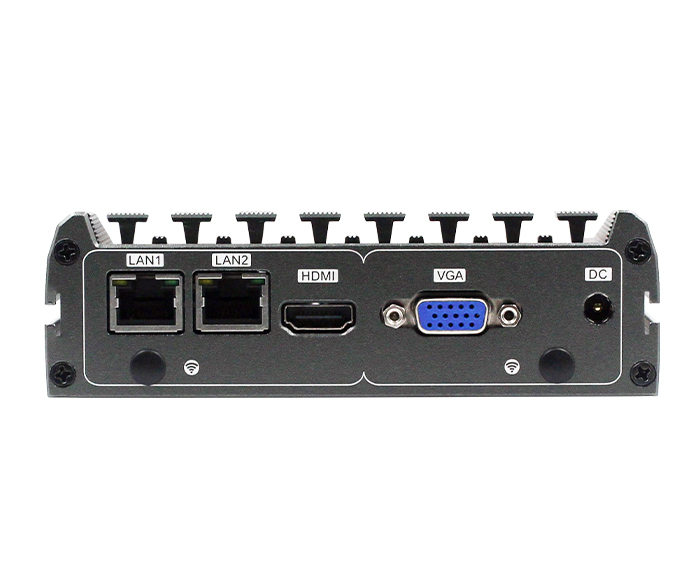

I/O?back panel

Ports

1*VGA?1*HDMI 2*USB2.0 2*USB3.0?2*LAN

1* quick start button with indicator light

1* restart button

1*Line_out 1*MIC

1* power indicator

1* hard disk indicator

Internet

Controller

2*Intel I211ATHigh-performance Gigabit LAN，RJ45 Port

?

Input/output interface

USB

2*USB2.0 2*USB3.0 Max support+5V/1A

Com

1*RJ45 Port RS-232

Audio

1*LINE OUT 1*MIC

Expansion bus

Mini-PCle

1* Mini-PCIe?socket ,support?PCIE and USB signal equipment

Storage

SATA

1*standard SATAII Port, Maximum transfer rate 3Gb/s

M-SATA

1*M-SATA?Socket,?Support SanDisk protocol, maximum?rate 3gb/s

EMMC

Support32/64/128G(optional）

POWER SUPPLY

Power Type

Wide Voltage 12-19V

?

WORKING ENVIRONMENT

Working temperature

-20℃?~ +60℃

Storage temperature

-40℃?~ +85℃

Working humidity

0% ~ 90%(non-condensing)

Storage humidity

0% ~ 90%(non-condensing)

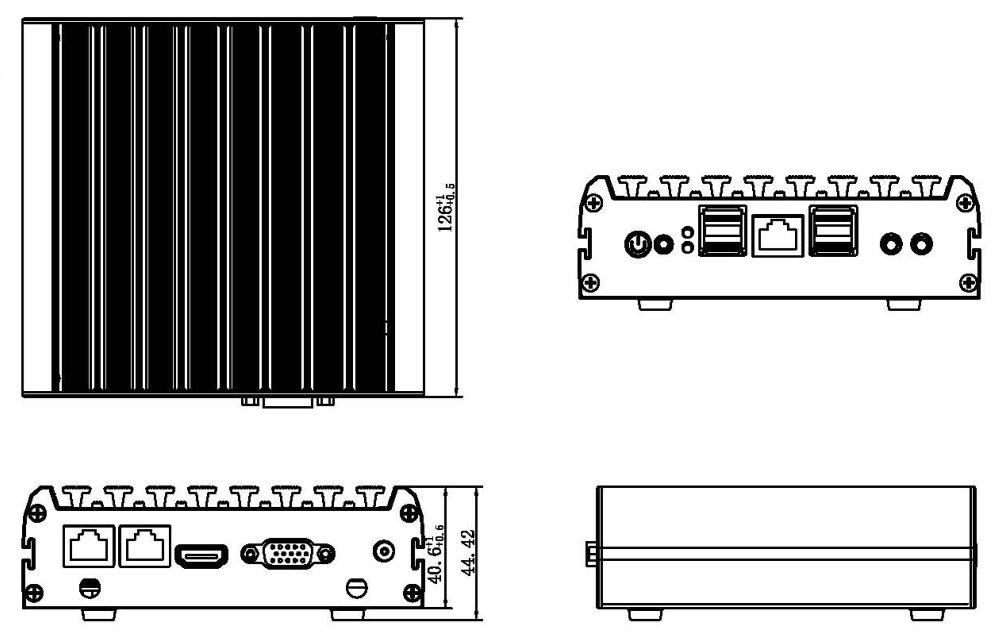

MEASURE

Size

134*126*40.6 mm

Weight

1.5KG

Certification

?

CE,ROSH,FCC
